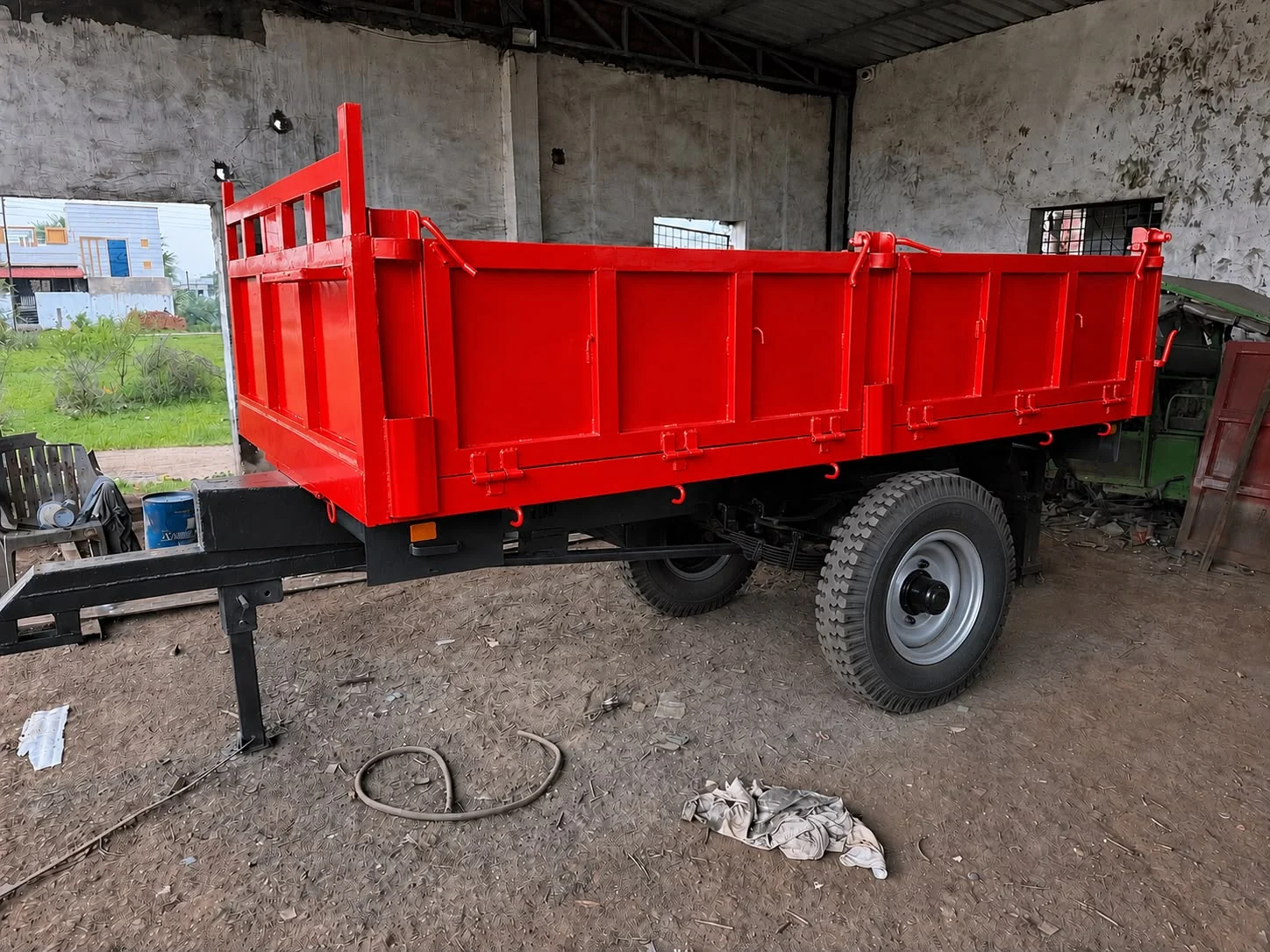

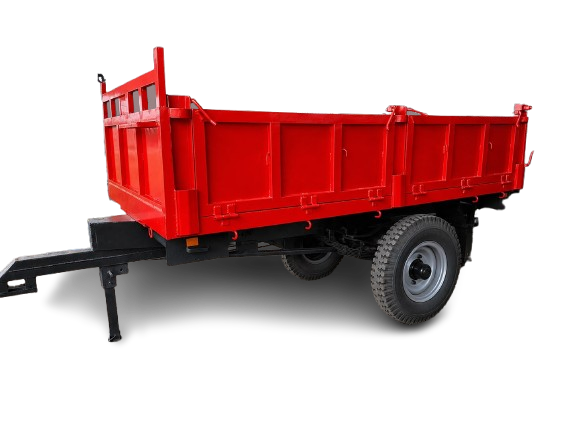

Tractor Trailer Manufacturer in India
Vijaylaxmi Engineering manufactures Vijay tractor trailers in 2-wheel and 4-wheel configurations, with 5 ton, 6 ton and 10 ton capacity options.
Request a Quote View Models
2-Wheel & 4-Wheel Tractor Trailers
Choose the capacity and configuration that matches your tractor and application. The specifications below are the model details supplied by Vijaylaxmi Engineering.
Vijay 5 Ton Tractor Trailer
2-wheel tractor trailer configuration.
Vijay 6 Ton Tractor Trailer
2-wheel tractor trailer configuration.
Vijay 10 Ton Tractor Trailer
4-wheel tractor trailer configuration.
Vijay Tractor Trailer Specifications
The following dimensions and component specifications have been provided for the current Vijay trailer configurations.
| Specification | 5 Ton | 6 Ton | 10 Ton 4-Wheel |
|---|---|---|---|
| Configuration | 2 Wheel | 2 Wheel | 4 Wheel |
| Capacity | 5 Ton | 6 Ton | 10 Ton |
| Body Length × Width × Height | 3050 × 1850 × 610 mm | 3660 × 1850 × 610 mm | 4575 × 2135 × 520 mm |
| Axle | 75 × 75 mm | 75 × 75 mm | 90 × 90 mm |
| Bearing | 32213 & 2216 | 32213 & 2216 | 32213 & 2216 |
| Tyre Options | 900-20, 1000-20, 900-16 | 900-20, 1000-20, 900-16 | 900-20, 1000-20, 900-16 |
| Platform Sheet Thickness | 5 mm | 5 mm | 5 mm |
| Chassis | ISMC 200 × 75 | ISMC 200 × 75 | ISMC 200 × 75 |
| Hydraulic Specification | 10 Ton Liftwell Jack | 10 Ton Liftwell Jack | 10 Ton Liftwell Jack |
| Tractor Compatibility | Above 30 HP | Above 30 HP | Above 30 HP |
| Tipping Angle | Up to 45° | Up to 45° | Up to 45° |
| Warranty | 1 Year | 1 Year | 1 Year |
Built for Tractor-Based Transport
- 5 ton and 6 ton 2-wheel configurations
- 10 ton 4-wheel configuration
- ISMC 200 × 75 chassis
- 5 mm platform sheet
- 75 × 75 mm axle for 5 ton and 6 ton
- 90 × 90 mm axle for 10 ton 4-wheel
- 32213 and 2216 bearings
- 10 ton Liftwell hydraulic jack
- Suitable for tractors above 30 HP
- 1-year warranty
Tractor Trailer Applications
Agricultural Produce
Transport crops and farm produce between fields, storage locations and markets.
Farm Materials
Move soil, manure, seeds, tools and other agricultural materials.
General Material Handling
Use the appropriate trailer configuration for permitted agricultural and material-handling applications.
Explore Vijay Trailer Models
Tractor Trailer FAQs
What tractor trailer capacities are available?
Vijaylaxmi Engineering lists 5 ton, 6 ton and 10 ton tractor trailer configurations.
Are Vijay trailers available in 2-wheel and 4-wheel configurations?
Yes. The 5 ton and 6 ton configurations are listed as 2-wheel trailers, while the 10 ton configuration is listed as a 4-wheel trailer.
What is the chassis specification?
The supplied specification is ISMC 200 × 75.
What axle sizes are used?
The 5 ton and 6 ton trailers use a 75 × 75 mm axle, while the 10 ton 4-wheel trailer uses a 90 × 90 mm axle.
What hydraulic system is specified?
The supplied hydraulic specification is a 10 ton Liftwell jack.
What tractor HP is compatible?
The supplied requirement is tractors above 30 HP. Final compatibility should be confirmed for the selected model and application.
What is the tipping angle?
The supplied tipping angle is up to 45 degrees.
What is the warranty?
The supplied warranty is 1 year.
What are the listed prices?
The supplied prices are ₹1,90,000 for 5 ton, ₹2,10,000 for 6 ton and ₹2,80,000 for 10 ton. Confirm the current quotation and applicable taxes/freight before purchase.
Get a Vijay Tractor Trailer Quote
Contact Vijaylaxmi Engineering with your tractor model, required capacity and delivery location.
Call +91 88060 21233 Email Vijaylaxmi Engineering WhatsApp
